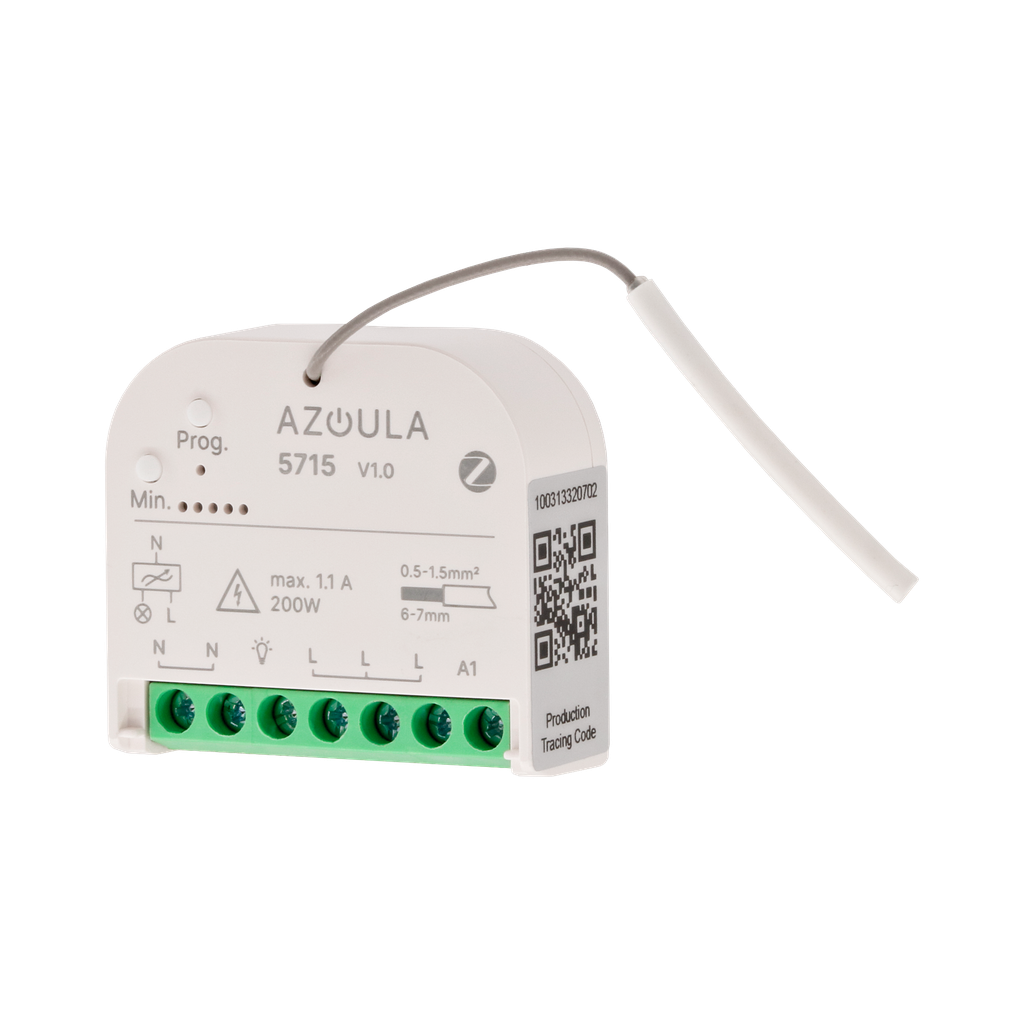

Azoula Dimming Actuator Mini | Zigbee compatible
Now even better: we have reinvented our innovative actuators with phase section and implemented your wishes.
- Mini for the switch box or lamp installation
- Connection with and without neutral conductor
- Connection for external buttons or switches
- Integrated energy sensors
- Soft start function
- Minimum brightness adjustable
- Supports Zigbee mesh
- Linear dimming curve (phase cut-off)
You can find more information and pictures of our newcomer here.
Please note: When using Philips Hue, the actuator is only displayed in Apple Home if Matter is used as the interface and not HomeKit.
Delivery and shipping costs details *
Currently no delivery date can be given.
Only pickup at our warehouse is possible!
No shipping rule found. Please contact our customer support.
We ship this product to the following countries (pickup for EU citizens of all countrys possible):
Safety Instructions
Caution: Electricity in the high-voltage range! Risk of electric shock possible. The product mentioned here may only be installed and maintained by qualified personnel.
The recessed LED spotlight must be installed in ceilings and cavities with sufficient space above. No insulating material or similar must rest directly on the product. Otherwise there is a risk of fire due to the lack of heat dissipation!
Manufacturer
iluminize GmbH | Hellenthalstr. 3 | 47661 Issum | Germany | service@iluminize.com| Documents for download | ||
|---|---|---|
| 7515 Operating instructions |
|
|
| 5715 CE Declaration of confirmation |
|
|
The new dimming actuator - small, smart & compact
Energy consumption sensor
With just a few clicks, you can get an overview of all connected appliances and their power consumption in real time. In today's smart home household, many things run automatically. Track the data live and get your own impression of efficiency and potential for improvement. These 4 details can be tracked at any time:
- Voltage
- Current
- Power
- Total Power
Supported Zigbee commands
New insights into the inner workings of Zigbee are opening up for our detail-loving users. You can find out which Zigbee commands are supported and which diagnostic data can be viewed here.
Input Clusters: Output Clusters:
- 0x0000: Basic 0x0019: OTA
- 0x0003: Identify
- 0x0004: Groups
- 0x0005: Scenes
- 0x0006: On/off
- 0x0702: Simple Metering
- 0x0008: Level Control
- 0x0b04: Electrical Measurement
- 0x0b05: Diagnostics
