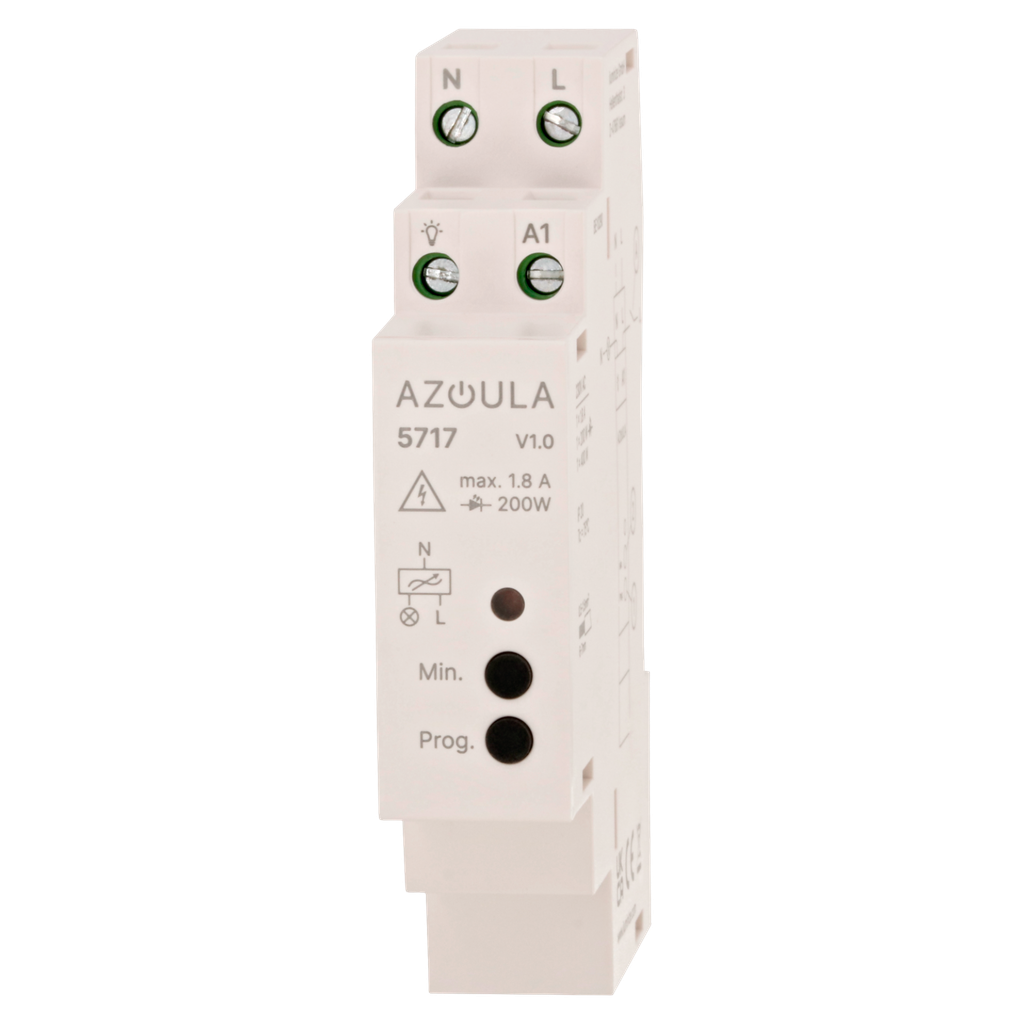

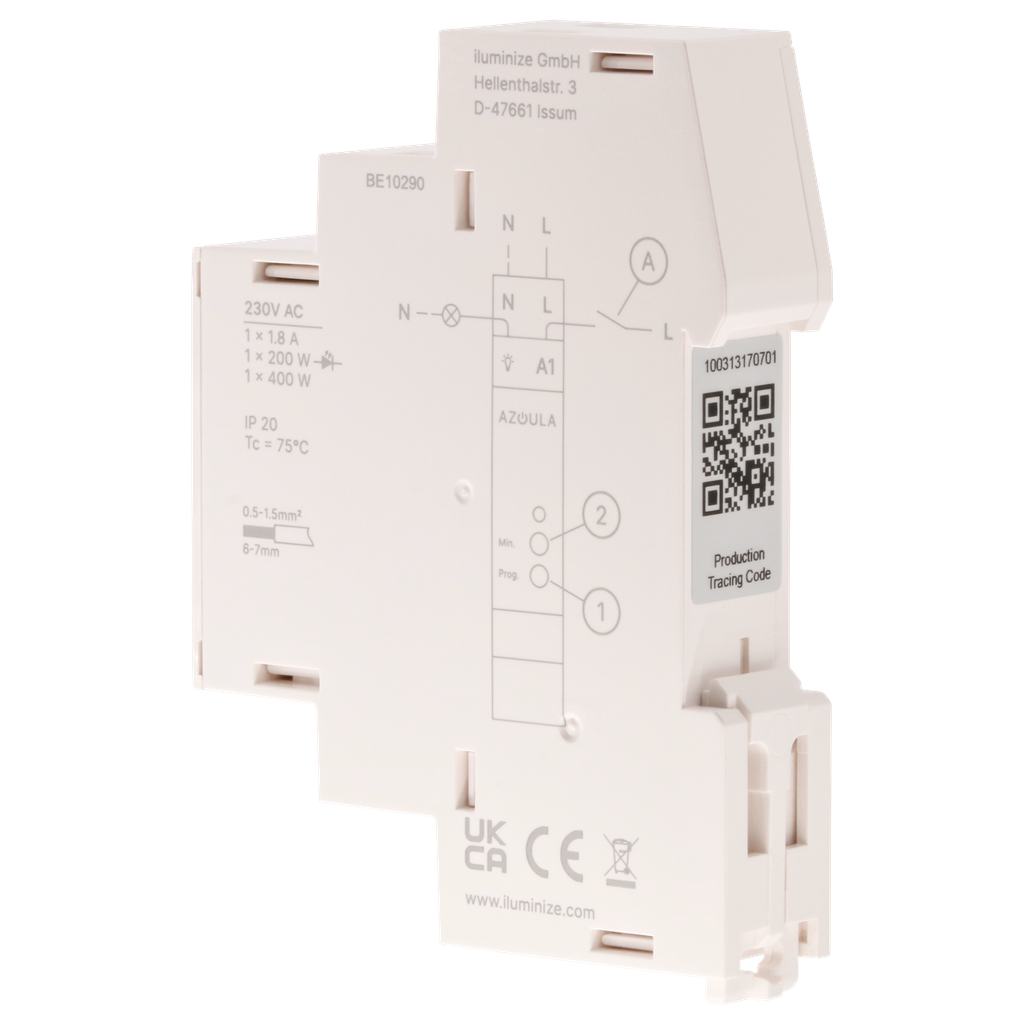

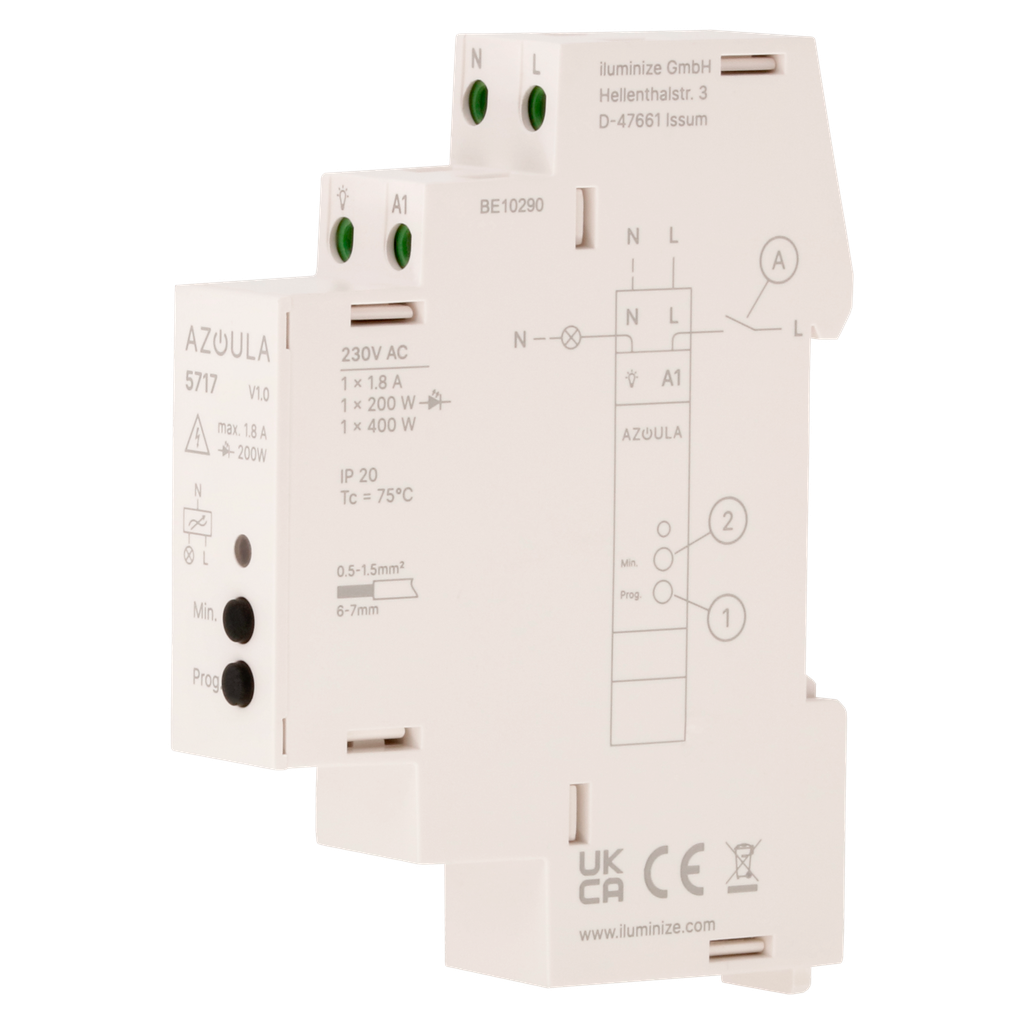

Azoula dimming actuator DIN | Zigbee compatible
With our new dimming actuator, you can dim and switch a group of 230V light sources, making them smart for any Zigbee-compatible system. Here you can dim by phase cut-off and benefit from the soft start function, which ensures that the brightness is dimmed up gently.
A new plus point is the integrated sensor for the Energy consumption. This gives you an overview of the performance data of all consumers in real time. An external button or light switch can be connected for manual operation. You set the type of button/light switch individually via Zigbee in the app. An overview of the different Zigbee commands can also be found here.
Our newcomer can now be mounted on a top-hat rail (DIN rail), which simplifies installation in switch and meter cabinets.
Please note: When using Philips Hue, the actuator is only displayed in Apple Home if Matter is used as the interface and not HomeKit.
Delivery and shipping costs details *
Currently no delivery date can be given.
Only pickup at our warehouse is possible!
No shipping rule found. Please contact our customer support.
We ship this product to the following countries (pickup for EU citizens of all countrys possible):
Safety Instructions
Caution: Electricity in the high-voltage range! Risk of electric shock possible. The product mentioned here may only be installed and maintained by qualified personnel.
The recessed LED spotlight must be installed in ceilings and cavities with sufficient space above. No insulating material or similar must rest directly on the product. Otherwise there is a risk of fire due to the lack of heat dissipation!
Manufacturer
iluminize GmbH | Hellenthalstr. 3 | 47661 Issum | Germany | service@iluminize.com| Documents for download | ||
|---|---|---|
| 5717 Operating instructions |
|
|
| 5717 CE Declaration of confirmation |
|
|
The new DIN dimming actuator with many extras
Energy consumption sensor
With just a few clicks, you can get an overview of all connected appliances and their power consumption in real time. In today's smart home household, many things run automatically. Track the data live and get your own impression of efficiency and potential for improvement. These 4 details can be tracked at any time:
- Voltage
- Current
- Power
- Total power
Supported Zigbee commands
New insights into the inner workings of Zigbee are opening up for our detail-loving users. You can find out which Zigbee commands are supported and which diagnostic data can be viewed here.
Input Clusters: Output Clusters:
- 0x0000: Basic 0x0019: OTA
- 0x0003: Identify
- 0x0004: Groups
- 0x0005: Scenes
- 0x0006: On/off
- 0x0702: Simple Metering
- 0x0008: Level Control
- 0x0b04: Electrical Measurement
- 0x0b05: Diagnostics
