Zigbee LED Controller Mini - the little helper for smart light moments

The iluminize Zigbee controller harmonizes perfectly with LED lamps and luminaires that have the following: they are dimmable at a constant voltage between 12V and 36V and they can be dimmed with pulse width modulation (PWM). The voltage is determined by the power supply and the voltage must match the LED voltage. Example: a 12V LED light strip may only be operated with a 12V power supply.

If the mentioned requirements are fulfilled, our controller is suitable for

• LED light strips

• LED built-in spotlights

• LED built-in stair lights

• LED furniture built-in lights

• LED-panels

Did you know? If you disconnect the controller from the power supply, it will remember the last setting the next time you switch it on!

Leistungsstark

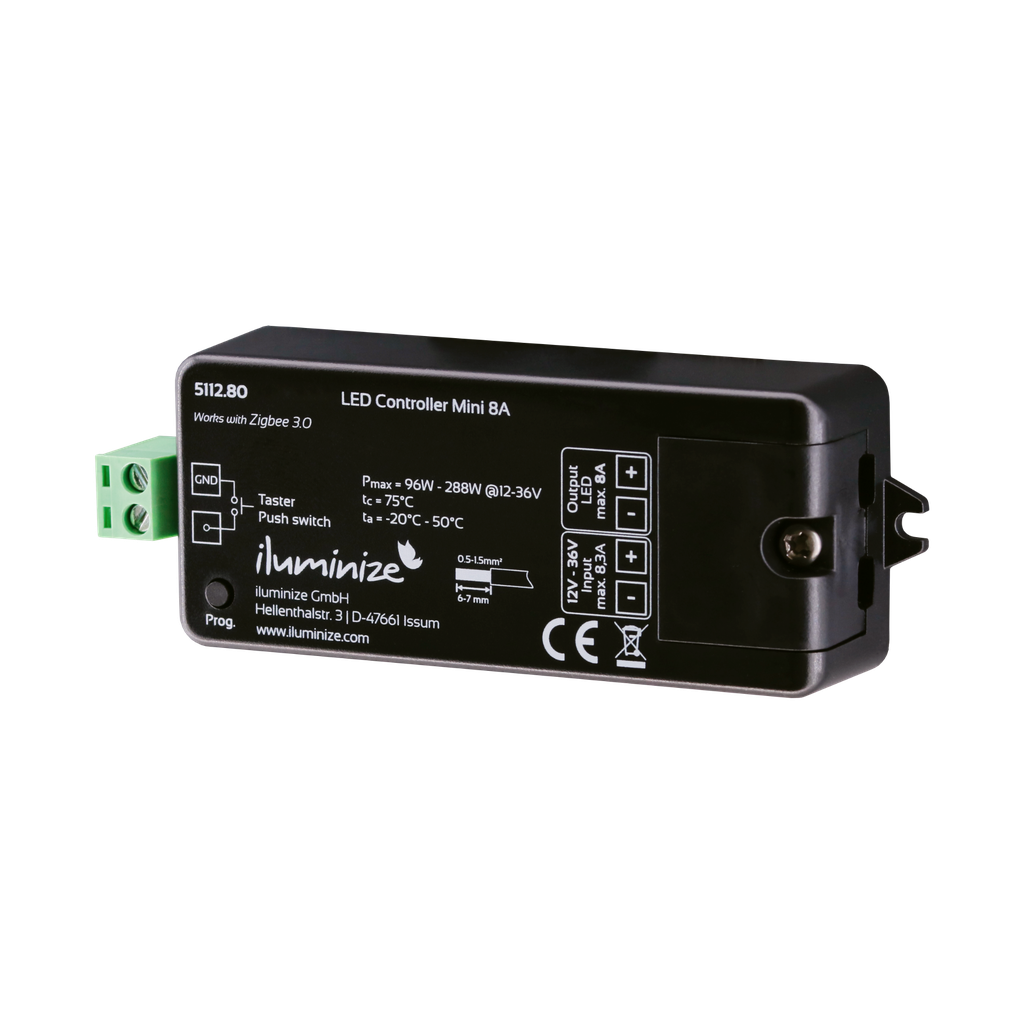

Our compact LED controller has one channel with 8A and allows the connection of single color LEDs. Depending on the input voltage, the maximum wattage varies.

A little tip? The pushbutton controllers low voltage work with 3.3V voltage, with closed contact about 0.44mA current flows

Additional function: Optional pushbutton switches can be connected. The installation offers further advantages, but should be done according to the wiring diagram. Thus, possible errors, such as connecting to 230V, can be avoided.

Smartes Zusammenspiel

Our Zigbee items are compatible with many Zigbee coordinators - e.g. Amazon Echo Plus (Alexa), Google Home (Google Assistant), Philips Hue, IKEA TRÅDFRI and many more. In addition, control is possible with many Zigbee Touchlink enabled remote controls. Not compatible with Osram Lightify!

Compatible with:

• Philips Hue

• Amazon Echo Plus (Alexa)

• IKEA TRÅDFRI

• Osram Lightify

• Google Assistant

• and many more

Das iluminize Steuerungssystem

The LED controller is paired with several Zigbee controls from the iluminize control system. You can choose between handheld remote controls, wall dimmers or desk dimmers. However, the Zigbee controls work independently, but share scenes. This means that a scene saved with the remote control under S1 works in exactly the same way on, for example, the likewise coupled wall dimmer.
